Description
|
MODEL |
|
NL-WH-DH-8BM1P |
|
TYPE |
|
Instant Water Heater (Faucet Control Type) |
|
POWER SUPPLY |
|
AC 230v / 60Hz |
|
POWER CONSUMPTION |
|
8.0kW |
|
WATER STOP SYSTEM |
|
End Stopping System |
|
WATER PRESSURE |
MIN |
0.45 kgf/cm2 (44.1 kpa) |
|
MAX |
5.55 kgf/cm2 (543 kpa) |
|
|
POWER CONTROL |
|
3-Step Rotary Switch Type |
|
WATER TEMPERATURE CONTROL |
|
Off / 2.5 kw/ 3.5 kw/ 6.0 kw |
|

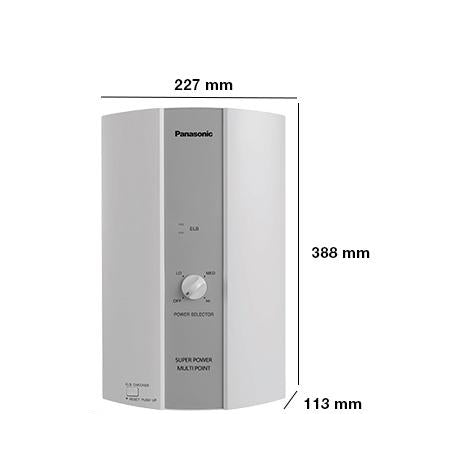

BODY DIMENSION |
(L x W x H, mm) |
113mm x 227mm x 388mm |
|
WEIGHT |
kg |
3.2 kg |
|
SAFETY DEVICE |
|
Built-in ELCB, Thermal Cut-out |
|
SHOWER HEAD |
|
3-way Antibac Shower Plate |
|
SEMI-PAUSE |
|
- |
|
OTHER |
|
Water Filter Unit with Pressure Relief Valve |
