Description
PRODUCT BENEFITS
- Equipment for suspended and pole mounting included
- Unique heat sink design with air channels to increase system reliability
- Low maintenance and operation costs due to the long lifetime of LED
- Single piece lens, color stable, and shape-retaining even at high temperatures
- High efficiency and reliability
AREAS OF APPLICATION

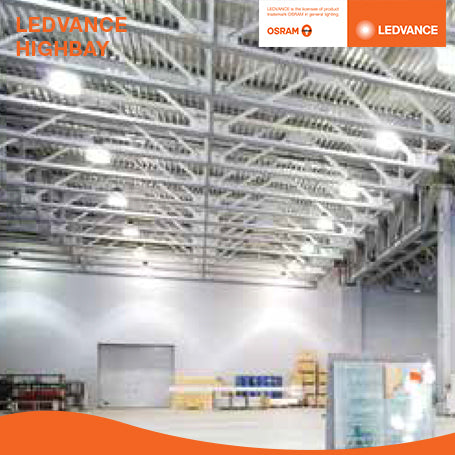

- Industrial and storage facilities
- Production and assembly facilities

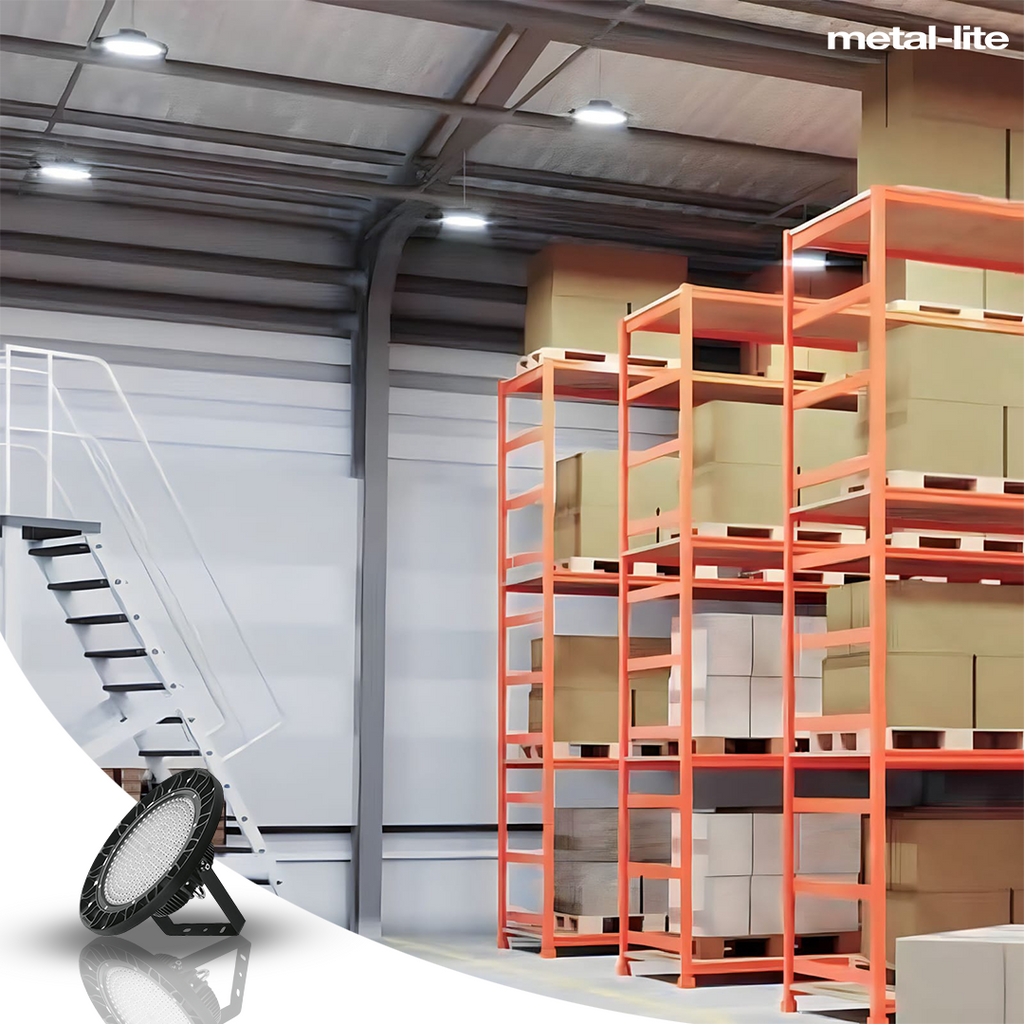

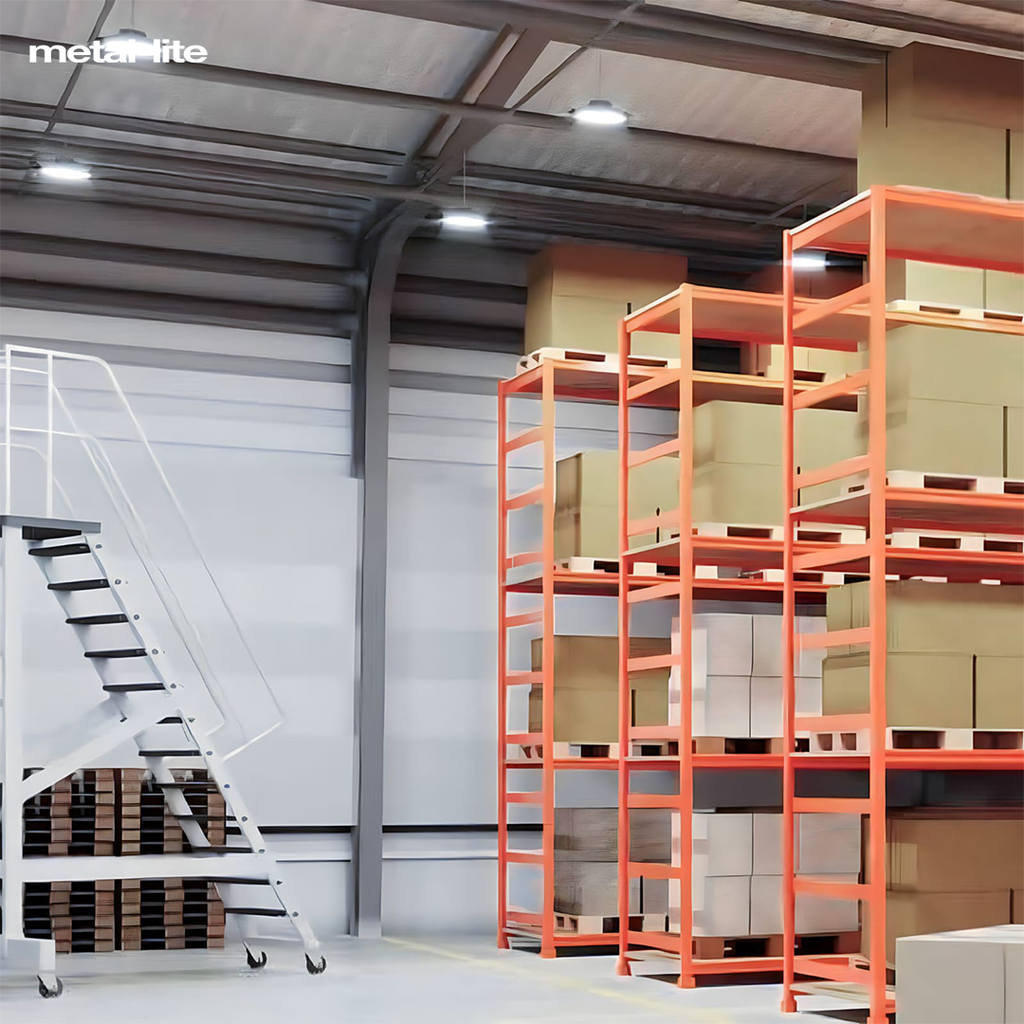

- Warehouses
- Loading docks
- Train stations
- Aircraft hangers
- Shopping malls
- Supermarkets
KEY FEATURES
- Four versions with different luminous flux available
- Lifetime: up to 50,000 h
- Beam angle: 90°×90° or 70°×70°
- Color rendering index Ra: ≥ 80
- Power factor: > 0.9
- Impact resistance: IK08
- Type of protection: IP65
- Robust die-cast aluminum housing
- CCC marked, CB test certificate
FIXTURE SPECIFICATIONS
| ITEM | OS-HB200 | |
| POWER CONSUMPTION | 100W | |
| LUMENS | 27000lm | |
| COLOR TEMPERATURE | Daylight | |
| LIFETIME HOURS | 100,000 hours | |

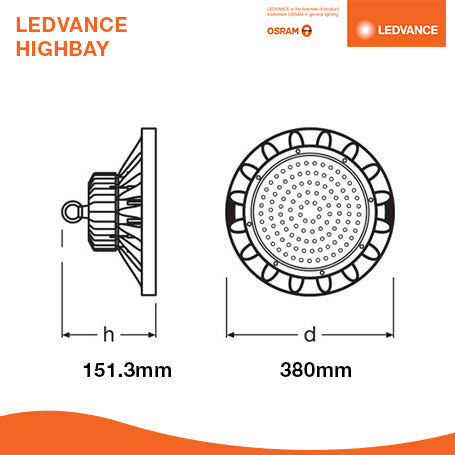

| DIMENSIONS | (L x W x H, mm) | ⌀ 376mm x 139mm |
| WEIGHT | 4080g |
|
| CRI (RA) | >80 | |
| BEAM ANGLE | 90° | |
| INPUT VOLT | 220-240V |
